OPC UA Omni-Edge

Bridge every brownfield device to OPC UA. One YAML file. Every protocol.

A configuration-driven edge server that exposes Siemens S7, Modbus, EtherNet/IP, EtherCAT, IO-Link, third-party OPC UA servers and Redis as a single, standards-compliant OPC UA endpoint — without writing a line of code.

Built on node-opcua by the team that authors it.

Get a Quote Read the Docs

From the maintainers of node-opcua

The edge server we always wished existed.

"We've spent a decade watching teams reinvent the same brownfield gateway, project after project — one for the S7 PLC, one for the Modbus drive, one for the IO-Link master, all glued together with bespoke scripts. Omni-Edge collapses that effort into a single YAML file, on top of the same node-opcua stack we maintain upstream. One vendor, one accountable contact, and a clean, standards-compliant OPC UA endpoint at the end of it."

Etienne Rossignon — Creator of NodeOPCUA & CEO of Sterfive

What Omni-Edge does

Capabilities that turn brownfield chaos into a standard endpoint

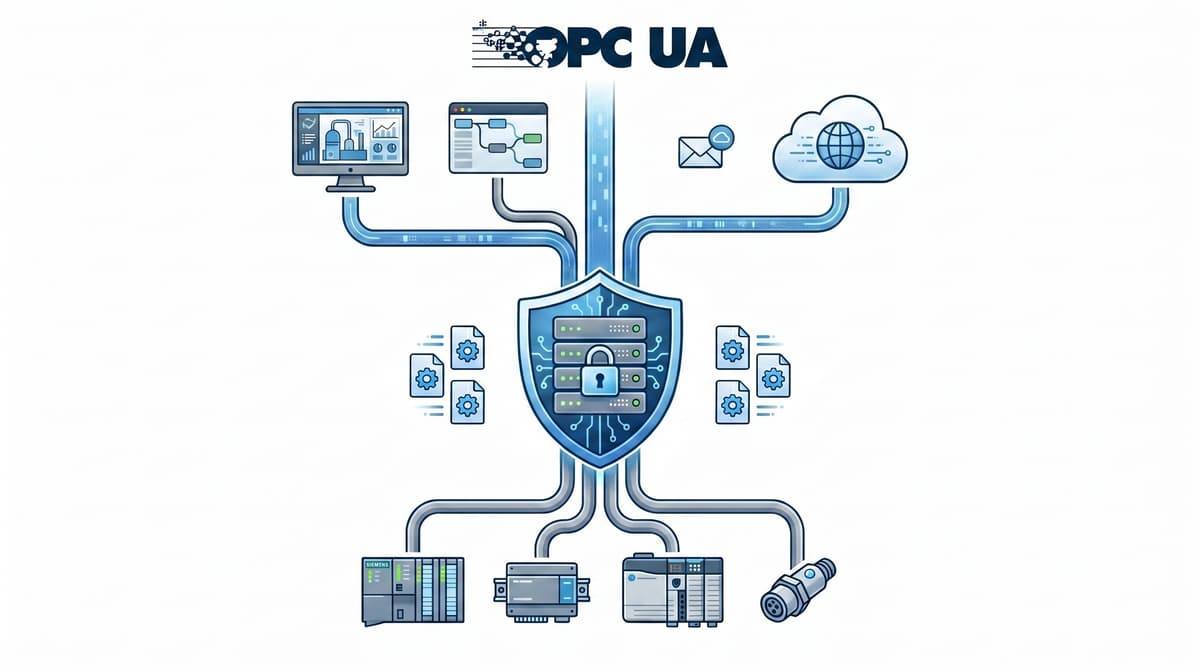

Omni-Edge sits between your factory equipment and your IT systems and presents a single, secure OPC UA endpoint on top of everything you already own — no rip-and-replace, no custom development.

Brownfield Modernisation

Unlock the data trapped in legacy PLCs

Connect Siemens S7-300/400/1200/1500, Modbus TCP and serial devices, Allen-Bradley ControlLogix tags, EtherCAT slaves and IO-Link masters — and expose them as a clean OPC UA address space aligned with the OPC Foundation companion specifications (DI, Machinery, PADIM, IO-Link, …). No PLC reprogramming, no custom firmware, no integration project.

OT/IT Convergence

One endpoint your SCADA, MES and cloud already speak

Your SCADA, historian, MES and cloud platforms already speak OPC UA. Omni-Edge gives them exactly that — a single secure endpoint, with encryption, X.509 authentication, role-based access and a full audit trail — on top of a fleet of devices that don't.

Edge-to-Cloud Telemetry

OPC UA PubSub over MQTT, out of the box

Push selected portions of your address space to AWS, Azure, Google Cloud or any MQTT broker as standards-compliant OPC UA PubSub messages — while keeping the Client/Server endpoint available for SCADA and engineering tools. One configuration, two integration patterns.

Built-in Security & Push Certificate Management

A hardened OPC UA endpoint, manageable across fleets at scale

Security is not an afterthought — it is baked into Omni-Edge. Encrypted transport (Basic256Sha256, Aes128_Sha256_RsaOaep, SignAndEncrypt), X.509 user authentication, role-based access on every variable and method, and a full server-side PKI: own certificate generation, trusted issuers list, rejected-clients quarantine, CRL handling, and a predictable on-disk store ready for backup or GitOps.

The server implements the OPC UA Push Certificate Management model — ServerConfiguration, CreateSigningRequest, UpdateCertificate, ApplyChanges and trust-list update methods — so certificates can be rotated remotely from any standards-compliant management client or a Global Discovery Server (GDS). No shell access to the edge host, no truck roll, no downtime: a single technician keeps thousands of edge nodes compliant from a central console.

Industries where Omni-Edge is at work

Field-proven across discrete manufacturing, transport and regulated industries

The same declarative engine adapts to the constraints of each vertical — from millisecond-grade interlocks on platform-screen doors to 21 CFR Part 11 traceability in pharma — without ever leaving its single-YAML programming model.

Automotive

Unify body shop, paint and final-assembly data

From multi-vendor robotic cells in the body shop, to PLC-driven conveyors in paint, to torque controllers and IO-Link sensors on the final-assembly line — Omni-Edge brings every station under a single OPC UA roof, aligned with the OPC Robotics and Machinery companion specifications. Plant MES, OEE dashboards and digital-twin platforms ingest a clean, harmonised model across all four trim levels of a vehicle line — instead of dozens of bespoke connectors that have to be rewritten at every model-year change.

Railway — Automatic Platform-Gate Doors

Trackside controllers and PSD systems, exposed safely to the supervisor

Platform Screen Doors (PSDs) and automatic gate-door subsystems typically mix Siemens S7, Modbus and proprietary serial protocols, with strict cyber-security and lifecycle requirements. Omni-Edge sits in the station controller, aggregates every door, gate and trackside PLC into one secured OPC UA endpoint, and feeds the operations control centre (OCC) and the asset-management system — with encryption, X.509 user roles, audit logging, historisation for incident analysis, and remote certificate rotation that doesn't require a depot visit.

Packaging Industry

OEE, recipe handling and changeover, the PackML way

Packaging lines are high-mix, high-changeover environments where every machine — filler, capper, labeller, case-packer, palletiser — comes from a different OEM. Omni-Edge bridges them into a unified OPC UA address space modelled on the PackML companion specification: standard states, modes and mode-transition events, alarms, count-per-SKU counters and recipe-handling methods. The MES drives the whole line through one endpoint, OEE rolls up automatically, and bringing on a new machine becomes a YAML edit instead of a custom-driver project.

Pharmaceuticals & Life Sciences

Compliant data capture, even on air-gapped sites

Regulated production demands traceability, data integrity and a clean audit trail (21 CFR Part 11, EU GMP Annex 11). Omni-Edge captures every batch-relevant value with on-board historisation, exposes it as a typed OPC UA variable tied to a corporate or ISA-95 information model, and enforces user roles down to the variable. Offline node-locked licensing and Push Certificate Management make it deployable on validated, internet-isolated networks — without ever shipping data outside the trusted zone.

Why Omni-Edge

A real OPC UA server, not just a gateway

Every brownfield value Omni-Edge exposes becomes a first-class OPC UA variable — typed, secured, historisable, and bound to a companion specification. It's a server, with the connectivity of a gateway.

One YAML, zero code: The entire address space, every protocol mapping and every transformation lives in a single human-readable YAML file — validated by JSON-Schema directly in your IDE, version-controllable, reviewable in a pull request.
Brownfield reach: First-class drivers for Siemens S7, Modbus TCP/RTU, EtherNet/IP, EtherCAT, IO-Link (IFM, Murr, Balluff), upstream OPC UA aggregation and Redis — all in one binary, all configurable side by side.
Companion specifications: OPC Foundation companion specs (DI, Machinery, PADIM, Auto-ID, Machine Tool, Robotics, PackML, IO-Link, ISA-95 Job Control, …) are included. Your own corporate NodeSet2.xml drops in as a first-class citizen.
JSONata transformations: Scale, transcode, combine and conditionally route values with inline JSONata expressions. No JavaScript, no compilation — 95% of integration scaling handled in the configuration itself.
Security & PKI built in: Basic256Sha256 and Aes128_Sha256_RsaOaep, SignAndEncrypt, X.509 user authentication, role-based access, and a full Certificate Manager with OPC UA Push Certificate Management for remote rotation.
History without a historian: Flag any variable as historising and serve raw and aggregated HistoryRead to any OPC UA client. Trend and replay your shop floor without buying a separate historian.
MQTT PubSub: Optional OPC UA PubSub over MQTT for fan-out telemetry to cloud platforms, edge brokers or PubSub-aware aggregators — while preserving the Client/Server endpoint.
Hot reload, watch mode: Run with --watch and every save of the YAML file is picked up on the fly. Tight commissioning loops, fast iteration, zero downtime for the integrator.

One file config.yaml

From idea to a live OPC UA endpoint in one file

Load the companion specs you need, declare your instances, list your brownfield devices, bind each variable to a source — and Omni-Edge does the rest: address space, type checking, security, history, PubSub.

IDE IntelliSense via JSON-Schema
Companion-spec validated at startup
Same config, Docker / VM / bare metal
Reviewable in a pull request

Read the Docs Get a Quote

Windows · Linux · macOSDocker & native installersOnline or offline licensing

config.yaml

port: 4840

nodesets:
- di
- machinery
- uri:      http://acme.com/UA/Press/
  alias:    a
  nodeset2: ./model/Press.NodeSet2.xml

instances:
- browseName:     Press42
  organizedBy:    /di:DeviceSet
  typeDefinition: a:HydraulicPressType

brownfieldDevices:
s7:
  - { name: plc1, address: 192.168.1.10, rack: 0, slot: 1 }
modbus:
  - { name: mb1, type: TCP, address: 192.168.1.20, port: 502 }

mapping:
- opcua:   /di:DeviceSet/Press42/a:Temperature
  type:    s7
  point:   plc1/DB10.DBD0:REAL
  jsonata: value * 0.1 + 273.15

- opcua:   /di:DeviceSet/Press42/a:Status
  type:    modbus
  point:   mb1/holding:1000
  jsonata: value > 0 ? "OK" : "FAULT"

Validated by JSON-Schema in your IDE. Hot-reloaded with --watch.

Getting Started

From zero to a live OPC UA endpoint in four steps

1Install Omni-Edge

npm install @sterfive/opcua-omni-edge from the Sterfive private registry, pull the Docker image, or run the Windows installer.

2Describe your integration

Write a single config.yaml: load the companion specs you need, declare your instances, list your brownfield devices, and bind each variable to a source.

3Run with watch mode

opcua-omni-edge run -c config.yaml --watch — every save reloads the server on the fly. Ideal for commissioning and integration loops.

4Connect any OPC UA client

Your SCADA, historian, MES or cloud connector simply opens opc.tcp://host:4840 — and reads a clean, companion-spec-compliant address space.

Ready to modernise your shop floor?

Bridge every legacy machine in days, not months

Get a quote, request a trial, or talk to the engineers who maintain node-opcua. Direct access to the maintainers is included with every paid tier — a benefit unique to buying from the team that authors the upstream OPC UA stack.

One product. One licence. One support contract. Replace your patchwork of bespoke gateways and scripts with a declarative, standards-compliant edge server — backed by the authors of the underlying OPC UA stack.

Get a Quote Talk to Sterfive
